加工中心/自动车床/铣床/滚齿机/攻牙机/放电加工机/喷漆工程/隔离体涂装工程 |
| |
|
 |
| |
|
| - 因采用四重过滤方式，从油雾至烟雾都可完全去除。 |
| - 因配装高效空气过滤器而可99.97%以上去除0.3µm以上的灰尘。 |
| - 采用滑动方式，可简易更换过滤器。 |
| - 因容量大而可把多处的烟雾产生机器在一处处理。 |
| - 因内置环形预过滤滤芯而可延长过滤器寿命。 |
|
| |
 |
| |
 |
| |
|
 |
| |
| Type |
OME-100 |
OME-200 |
OME-300 |
OME-500 |
OME-750 |
OME-1000 |
OME-1500 |
| POWER SOURCE |
220V 1P, 220/380V 3P 60Hz |
220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) |
BLOWER
(60HZ) |
Airflow(m³/min) |
0 |
12 |
15 |
0 |
25 |
35 |
0 |
40 |
68 |
0 |
60 |
85 |
0 |
80 |
140 |
0 |
100 |
150 |
0 |
150 |
230 |
| Constant Pressure(mmAq) |
290 |
200 |
160 |
300 |
230 |
125 |
260 |
230 |
200 |
330 |
230 |
200 |
310 |
250 |
120 |
330 |
250 |
150 |
320 |
250 |
140 |
BLOWER
(50HZ) |
Airflow(m³/min) |
0 |
10 |
12 |
0 |
20 |
30 |
0 |
35 |
65 |
0 |
50 |
62 |
0 |
70 |
120 |
0 |
100 |
120 |
0 |
140 |
160 |
| Constant Pressure(mmAq) |
190 |
150 |
110 |
210 |
200 |
50 |
180 |
200 |
120 |
230 |
200 |
190 |
240 |
200 |
90 |
240 |
200 |
190 |
240 |
200 |
190 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
3.7 X 2 SET |
5.5 X 2 SET |
| FILTER |
1st Prefilter |
610x610 |
610x610 |
760x610 |
760x610 |
610x610 |
760x610 |
760x610 |
| x50 |
x50 |
x50 |
x50 |
x50x2 |
x50x2 |
x50x2 |
| 2nd Vee Bag Filter |
610x610x |
610x610x |
760x610x |
760x610x |
610x610x |
760x610x |
760x610x |
| 560x10 |
560x10 |
560x12 |
560x12 |
560x10 |
560x12 |
560x15 |
| POCKET |
POCKETx2 |
| 3rd Hepa Filter |
610x610x |
610x610x |
760x610x |
760x610x |
610x610x |
760x610x |
760x610x |
| 75 |
150 |
150 |
292 |
292x2 |
292x2 |
292x2 |
| SIZE |
A(mm) |
670 |
670 |
820 |
850 |
1,344 |
1,650 |
1,650 |
| B(mm) |
670 |
750 |
820 |
750 |
900 |
950 |
1,000 |
| C(mm) |
1,375 |
1,515 |
1,680 |
1,860 |
2,055 |
1,990 |
2,050 |
| ØD(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
| E(mm) |
240 |
215 |
260 |
260 |
275 |
275 |
275 |
| F(mm) |
345 |
295 |
660 |
660 |
640 |
635 |
625 |
| ØG(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
| H(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
| Approximate Weight (㎏) |
120 |
165 |
280 |
305 |
680 |
710 |
760 |

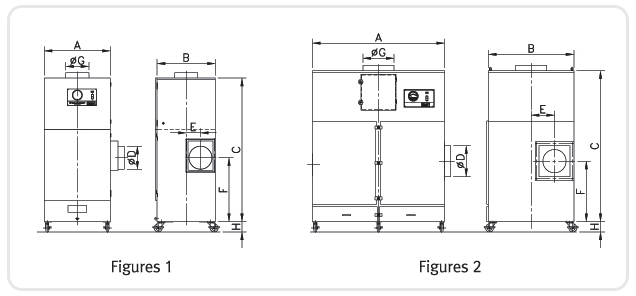

| Figures |
Figures 1 |
Figures 2 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
