激光雕刻/打标、焊接/化学及药品实验室、研究所 |
| |
|
 |
| |
|
| * 因紧凑型设计而可在狭窄空间安装。 |
| * 因把活性碳纤维滤芯和颗粒活性碳相结合而寿命长、效率高。 |
|
| |
|
 |
| |
 |
| |
|
 |
| |
| Type |
OS-50 |
OS-100 |
OS-200 |
| POWER SOURCE |
220V 1P, 220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) |
| BLOWER (60HZ) |
Airflow(m³/min) |
0 |
7 |
15 |
0 |
12 |
15 |
0 |
25 |
35 |
| Constant Pressure(mmAq) |
330 |
250 |
160 |
290 |
200 |
160 |
300 |
230 |
125 |
| BLOWER (50HZ) |
Airflow(m³/min) |
0 |
6 |
12 |
0 |
10 |
12 |
0 |
20 |
30 |
| Constant Pressure(mmAq) |
220 |
170 |
110 |
190 |
150 |
110 |
210 |
200 |
50 |
| MOTOR(Kw) |
0.75 |
0.75 |
1.5 |
| 1st Prefilter |
400 x 500 x 20 |
610 x 610 x 20 |
610 x 610 x 20 |
| 2nd HEPA |
400 x 500 x 75 |
610 x 610 x 75 |
610 x 610 x 150 |
| 3rd CARBON |
400 x 500 x 50H x 2 |
610 x 610 x 50H x 2 |
610 x 610 x 50H x 4 |
| SIZE |
A (mm) |
450 |
670 |
670 |
| B (mm) |
500 |
670 |
670 |
| C (mm) |
705 |
895 |
1,195 |
| ØD (mm) |
100 |
150 |
200 |
| E (mm) |
0 |
235 |
120 |
| F (mm) |
70 |
132 |
162 |
| ØG (mm) |
100 |
200 |
200 |
| H (mm) |
68 |
128 |
128 |
| Approximate Weight (㎏) |
65 |
105 |
180 |

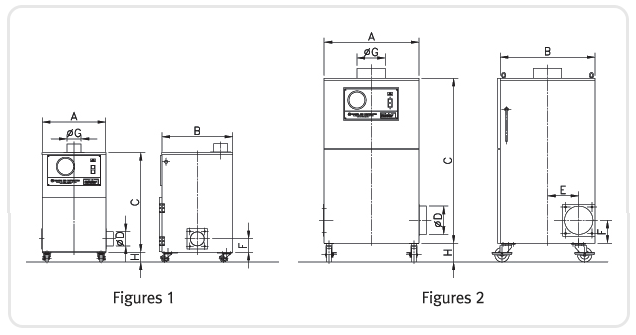

| Figures |
Figures 1 |
Figures 2 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
