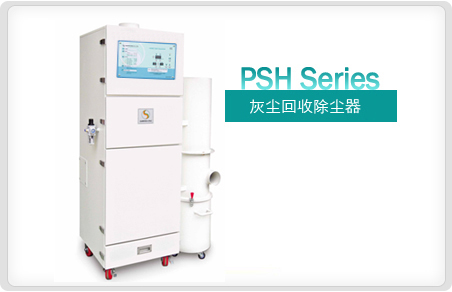

用于回收木块、分离粉末、小规模除尘 |
| |
|
 |
| |
|
| - 以旋风功能回收微细灰尘。 |
| - 个别回收不同两种以上的灰尘而可再生利用。 |
| - 各自的过滤器可互换使用。 |
| - 集尘盒采用滑动方式容易回收灰尘。 |
| - 以选项过滤器可选择符合用途的除尘器。 |
| ※注册灰尘分离装置的专利(第10-1202842号) |
|
| |
|
 |
| |
 |
| |
|
 |
| |
| Type |
PSH-12 |
PSH-25 |
PSH-40 |
PSH-60 |
| POWER SOURCE |
220V 1P, 220/380V 3P 50Hz,440V(Option) |
220/380V 3P 50Hz, 440V(Option) |
BLOWER
(60HZ) |
Airflow(m³/min) |
0 |
12 |
15 |
0 |
25 |
35 |
0 |
40 |
68 |
0 |
60 |
85 |
| Constant Pressure(mmAq) |
290 |
200 |
160 |
300 |
230 |
125 |
260 |
230 |
200 |
330 |
230 |
200 |
| BLOWER (50HZ) |
Airflow(m³/min) |
0 |
10 |
12 |
0 |
20 |
30 |
0 |
35 |
65 |
0 |
50 |
62 |
| Constant Pressure(mmAq) |
190 |
150 |
110 |
210 |
200 |
50 |
180 |
200 |
120 |
230 |
200 |
190 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
3.7 |
| FILTER |
Size
(W x L) |
Ø145 x 500L x 75 |
| Quantity (Pocket) |
4 |
6 |
9 |
12 |
| Filtering Area(m²) |
7.5 |
11.25 |
16.87 |
22.5 |
| Filtering Speed(m/min) |
1.6 |
2.2 |
2.4 |
2.7 |
| Material Quality |
POLYESTER |
| Shaking Type |
Automatic air pulse type |
| Number of solenoid valves |
2 |
3 |
3 |
4 |
| Air consumption quantity (Nl/min) |
20 |
20 |
20 |
35 |

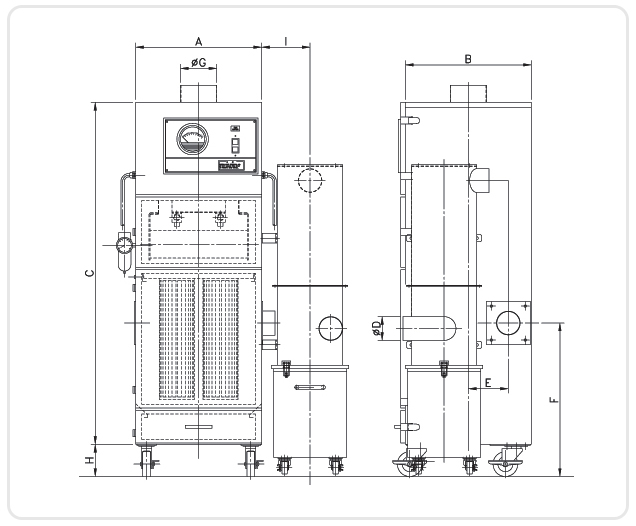

| SIZE |
A(mm) |
520 |
620 |
750 |
850 |
| B(mm) |
520 |
620 |
750 |
750 |
| C(mm) |
1,410 |
1,580 |
1,625 |
1,668 |
| ØD(mm) |
150 |
200 |
250 |
250 |
| E(mm) |
165 |
190 |
225 |
225 |
| F(mm) |
500 |
420 |
600 |
600 |
| ØG(mm) |
150 |
200 |
300 |
300 |
| H(mm) |
128 |
128 |
128 |
128 |
| I(mm) |
200 |
300 |
400 |
500 |
| Bucket Capacity (ℓ) |
16 |
45 |
65 |
80 |
| Approximate Weight (㎏) |
200 |
230 |
340 |
440 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
