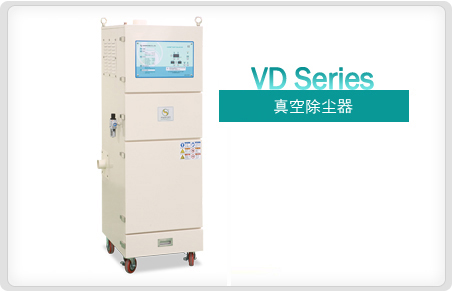

路由器M/C除尘、抛丸（喷丸加工）工程、磨具加工工程、连续启动式吸尘器、基材处理加工、压榨器废料回收机 |
| |
|
 |
| |
|
| - 因配装高工能的环形鼓风机而体现了高风压。 |
| - 因引进自身冷却系统而无发热可连续启动。 |
| - 因紧凑型设计而可在狭窄空间安装。 |
| - 因内置消音器而可安静启动。 |
|
| |
 |
| |
 |
| |
|
 |
| |
| Type |
VDPS-200 |
VDPS-300 |
VDPS-400 |
VDPS-500 |
VDPS-600 |
VDPS-700 |
| POWER SOURCE |
220V 1P, 220/380V 3P 60Hz, 50Hz(Option) |
220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) |
BLOWER
(60HZ) |
Airflow(m³/min) |
0 |
1 |
1.7 |
0 |
2 |
2.9 |
0 |
3 |
4.2 |
0 |
4 |
4.2 |
0 |
6 |
6.2 |
0 |
6 |
6.2 |
| Constant Pressure(mmAq) |
1,700 |
1,250 |
0 |
1,400 |
1,200 |
0 |
2,000 |
1,400 |
0 |
3,000 |
900 |
0 |
2,700 |
800 |
0 |
3,200 |
500 |
0 |
BLOWER
(50HZ) |
Airflow(m³/min) |
0 |
1 |
1.4 |
0 |
2.0 |
2.4 |
0 |
3 |
4 |
0 |
3 |
4 |
0 |
4.5 |
5.2 |
0 |
4 |
5.2 |
| Constant Pressure(mmAq) |
1,300 |
750 |
0 |
1,400 |
750 |
0 |
2,200 |
1,000 |
0 |
2,700 |
1,100 |
0 |
2,800 |
1,000 |
0 |
3,200 |
1,500 |
3,250 |
| MOTOR(Kw) |
0.5 |
0.85 |
1.9 |
2.6 |
3.7 |
4.6 |
| FILTER |
Size (W x L) |
Ø145 x 500L x 75 |
| Quantity (Pocket) |
4 |
| Filtering Area (m²) |
7.5 |
| Material Quality |
POLYESTER |
| Shaking Type |
Automatic air pulse type |

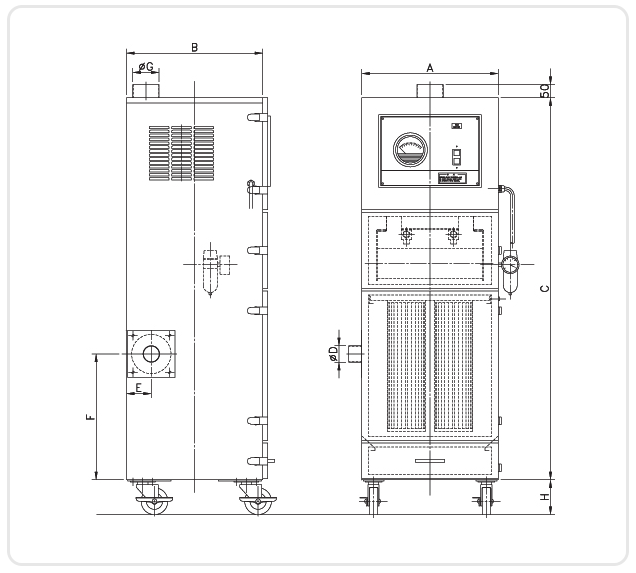

| SIZE |
A(mm) |
520 |
| B(mm) |
520 |
| C(mm) |
1,500 |
| ØD(mm) |
38 |
38 |
45 |
65 |
| E(mm) |
95 |
| F(mm) |
480 |
| ØG(mm) |
100 |
| H(mm) |
133 |
| Bucket Capacity (ℓ) |
16 |
| Approximate Weight (㎏) |
200 |
210 |
220 |
230 |
230 |
250 |
| Noise (DB) |
60 |
62 |
62 |
64 |
66 |
68 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
