吸入铝烟雾、微粉/铝轻合金/钛/淀粉/镁/硫磺/煤粉等 |
| |
|
 |
| |
|
最大限度降低灰尘爆发原因的结构

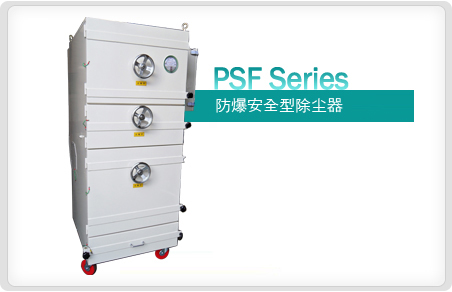

PSF SERIES是采用最大限度降低灰尘爆发原因的结构，最大限度降低因密封式结构会造成的除尘器爆发所产生的财产和生命损失。 |
1. 防静电滤筒式除尘器
2. 采用了电磁阀外壳
3. 防暴马达(选项)
4. 采用防倒流阻尼器
5. 采用防暴口 |
|
| |
|
 |
| |
 |
| |
|
| |
|
 |
| |
| Type |
PSF-12 |
PSF-25 |
PSF-40 |
PSF-60 |
PSF-80 |
PSF-100 |
PSF-150 |
PSF-200 |
PSF-300 |
| POWER SOURCE |
220V 1P, 220/380V 3P 60Hz |
220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) |
BLOWER
(60HZ) |
Airflow(m³/min) |
0 |
12 |
15 |
0 |
25 |
35 |
0 |
40 |
68 |
0 |
60 |
85 |
0 |
80 |
140 |
0 |
100 |
150 |
0 |
150 |
230 |
0 |
200 |
250 |
0 |
300 |
360 |
| Constant Pressure(mmAq) |
290 |
200 |
160 |
300 |
230 |
125 |
260 |
230 |
200 |
330 |
230 |
200 |
310 |
250 |
120 |
330 |
250 |
150 |
320 |
250 |
140 |
340 |
260 |
220 |
350 |
260 |
200 |
BLOWER
(50HZ) |
Airflow(m³/min) |
0 |
10 |
12 |
0 |
20 |
30 |
0 |
35 |
65 |
0 |
50 |
62 |
0 |
70 |
120 |
0 |
100 |
120 |
0 |
140 |
160 |
0 |
200 |
250 |
0 |
300 |
360 |
| Constant Pressure(mmAq) |
190 |
150 |
110 |
210 |
200 |
50 |
180 |
200 |
120 |
230 |
200 |
190 |
240 |
200 |
90 |
240 |
200 |
190 |
240 |
200 |
190 |
340 |
260 |
220 |
350 |
260 |
200 |
| MOTOR(Kw) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
3.7 X 2SET |
5.5 X 2SET |
7.5 X 2SET |
11 X 2SET |
| FILTER |
Size
(W x L) |
Ø145 x 500L x 75 |
Ø145 x800L x 75 |
Ø165x800Lx65 |
Quantity
(Pocket) |
4 |
6 |
9 |
12 |
18 |
24 |
24 |
24 |
32 |
Filtering Area
(m²) |
7.5 |
11.25 |
16.87 |
22.5 |
33.75 |
45 |
72 |
100 |
133.2 |
Filtering Speed
(m/min) |
1.6 |
2.2 |
2.4 |
2.7 |
2.4 |
2.2 |
2.1 |
2 |
2.3 |
| Material Quality |
POLYESTER |
| Shaking Type |
Automatic air pulse type |
| Number of solenoid valves |
2 |
3 |
3 |
4 |
6 |
8 |
8 |
8 |
8 |
| Air consumption quantity (Nl/min) |
20 |
20 |
20 |
35 |
40 |
60 |
60 |
80 |
100 |

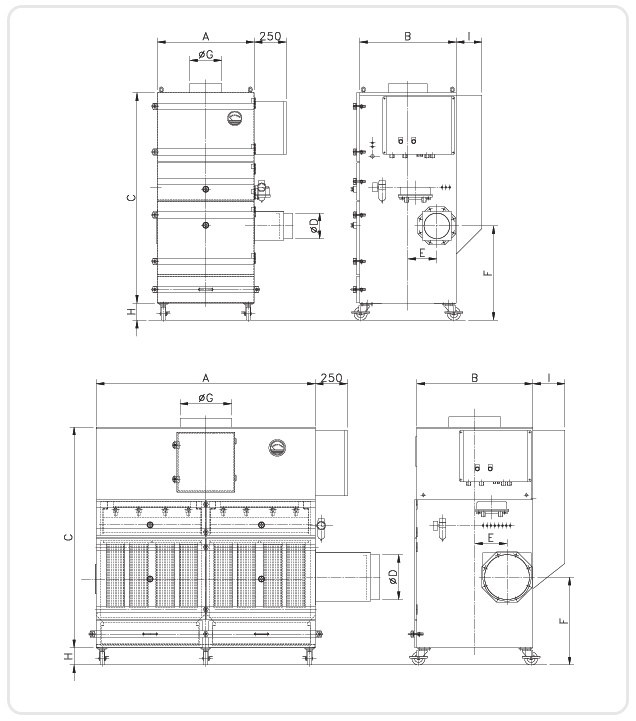

| SIZE |
A(mm) |
520 |
620 |
750 |
850 |
1,290 |
1,700 |
1,700 |
1,950 |
2,010 |
| B(mm) |
520 |
620 |
750 |
750 |
900 |
900 |
950 |
1,000 |
1,250 |
| C(mm) |
1,410 |
1,580 |
1,625 |
1,668 |
1,830 |
1,715 |
2,090 |
2,195 |
2,270 |
| ØD(mm) |
150 |
200 |
250 |
250 |
300 |
350 |
400 |
500 |
600 |
| E(mm) |
165 |
190 |
225 |
225 |
275 |
250 |
250 |
230 |
305 |
| F(mm) |
500 |
420 |
600 |
600 |
575 |
550 |
700 |
710 |
710 |
| ØG(mm) |
150 |
200 |
300 |
300 |
350 |
400 |
450 |
550 |
650 |
| H(mm) |
128 |
128 |
128 |
128 |
160 |
160 |
160 |
160 |
160 |
| I(mm) |
150 |
150 |
200 |
200 |
250 |
250 |
250 |
300 |
300 |
| Bucket Capacity (ℓ) |
16 |
45 |
65 |
80 |
100 |
130 |
130 |
170 |
170 |
| Approximate Weight (㎏) |
180 |
220 |
320 |
400 |
510 |
610 |
750 |
1,000 |
1,510 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
|
|
