激光雕刻、打标、焊接、化学及药品实验室、研究所、小规模除尘、电子零件组装线 |
| |
|
 |
| |
|
| - 上下、左右侧形成隔离墙壁而体现了低噪音。 |
| - 过滤器采用滑动方式，可简单更换过滤器。 |
| - 各过滤器都可互换使用。 |
| - 集尘盒采用滑动方式容易回收灰尘。 |
| - 以选项过滤器可选择符合用途的除尘器。 |
|
| |
 |
| |
 |
| |
|
 |
| |
| Type |
VDFS-200 |
VDFS-300 |
VDFS-400 |
VDFS-500 |
VDFS-600 |
VDFS-700 |
| POWER SOURCE |
220V 1P, 220/380V 3P 60Hz, 50Hz(Option) |
220V / 380V 3P 60Hz, 440V(Option), 50Hz(Option) |
BLOWER
(60HZ) |
Airflow (m³/min) |
0 |
1 |
1.7 |
0 |
2 |
2.9 |
0 |
3 |
4.2 |
0 |
|
| Type |

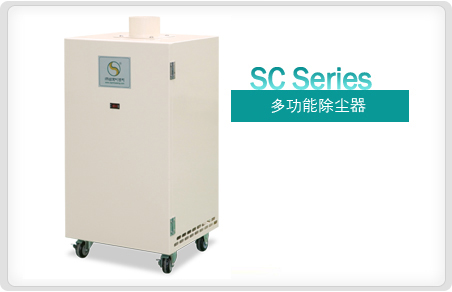

SC-20 |
| Soldering Dust Collector(A TYPE) |
Dust Collector(B TYPE) |
Oder Deletion Dust Collector(C TYPE) |
| POWER SOURCE |
220V 1P 50Hz, 60Hz, 220/380V 3P |
| BLOWER (60Hz) |
Airflow(m³/min) |
0 |
5 |
11 |
| Constant Pressure(mmAq) |
120 |
70 |
11 |
| BLOWER (50Hz) |
Airflow(m³/min) |
0 |
4 |
9.5 |
| Constant Pressure(mmAq) |
90 |
70 |
0 |
| MOTOR(Kw) |
0.25 |
| 1st Filter |
Size(WxLxH) |
340 x 340 x 20 |
340 x 340 x 80 |
340 x 340 x 20 |
| Filter Type |
PRE FILTER |
POLYESTER |
PRE FILTER |
| 2nd Filter |
Size(WxLxH) |
340 x 340 x 70 |
340 x 340 x 70 |
340 x 340 x 70 |
| Filter Type |
HEPA FILTER |
HEPA FILTER |
CARBON FILTER |
| 3rd Filter |
Size(WxLxH) |
340 x 340 x 70 |
|
340 x 340 x 70 |
| Filter Type |
CARBON FILTER |
CARBON FILTER |

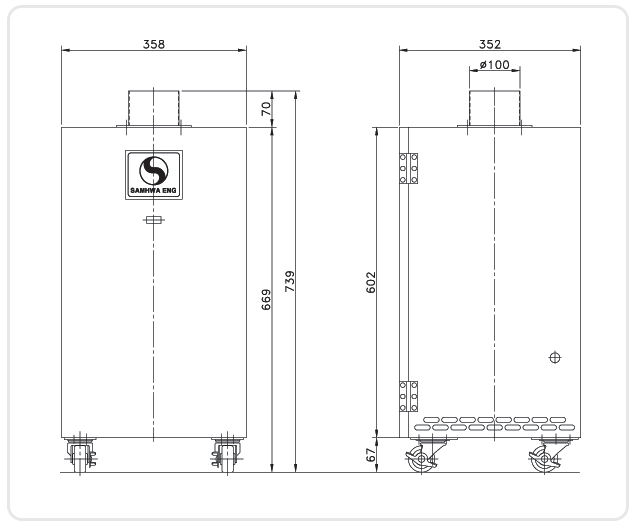

| Machine Size(W x L x H) |
358x 352 x 710 |
| Inlet Diameter(mm)D TYPE |
Ø100 X 1EA |
| Inlet Diameter(mm)F TYPE |
Ø62 X 2EA |
| Approximate Weight (㎏) |
50 |
|
| |
* The specification can change without a prior notice to improve the performance. |
| |
|
|
 |
|
