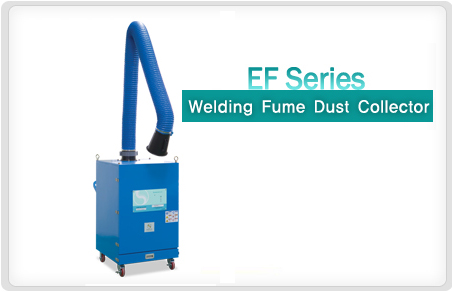

Welding Fume Dust Collector

- You can use it at a construction places. You can also use an odor deletion function using the ACF filter.

- You can use when fumes arise during ARC welding, CO₂welding, MAG welding, cutting, and special welding.

- EFA model can also removes odors and EFS model is portable.

- Location of the blower in the center achieves a much reduced noise level.

- It has a door with a filter that can be replaced without tools. (easy maintenance)

- The switch in the center can be easily operated.

- Several types of work can be performed with the replacement of the filter of one dust collector.

- The dust box mounted in the lower part of the dust collector is a slide type that can be easily demounted so that it is easy to collect dust.

- The preprocessing metal filter for filter protection is employed. (option)

Use		Welding Fume Dust Collector	Dust Collector for a Construction Site	Odor Deletion Dust Collector	Welding Fume Dust Collector	Dust Collector for a Construction Site	Odor Deletion Dust Collector
Type		EFA - 200	EFB - 200	EFS - 200	EFA - 300	EFB - 300	EFS - 300

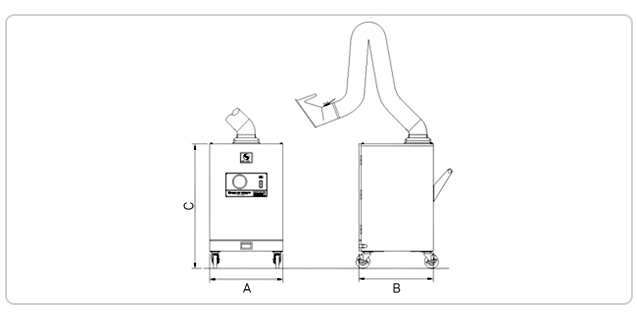

Dimension	Width (A)	670mm			670mm
	Length (B)	682mm			682mm
	Height (C)	1150mm			1150mm
Fan	Power (Kw)	1.5KW X 2P			2.2KW X 2P
Motor	Power	220V 1P AC, 220/380V 3P AC 60Hz, 440V(Option), 50Hz			220/380V 3P 60Hz, 440V(Option), 50Hz
Flexible Arm	Length / Quantity	2m x 1 SET			3m x 1 SET
	Diameter	Ø150mm			Ø150mm
Filter	1st Filter	Demister	Prefilter	Prefilter	Demister	Prefilter	Prefilter
	2nd Filter	Rectangular cartridge filter	Rectangular cartridge filter	Rectangular cartridge filter	Rectangular cartridge filter	Rectangular cartridge filter	Rectangular cartridge filter
	3rd Filter	Hepa filter	Hepa filter	ACF filter	Hepa filter	Hepa filter	ACF filter
Turbo	Airflow	25㎥/min			40㎥/min
Fan	(㎥/min)
	Constant Pressure (mmAq)	230mmAq			230mmAq
Bucket Capacity (ℓ)		17			17
Approximate Weight(㎏)		About 70kg			About 80kg
(Filter and arm included)
