Machining Center, Automatic lathe, Milling processing, Hobbing machines, Tapping machines, Electro-discharge machines, Sspray painting, Selection of materials, etc.

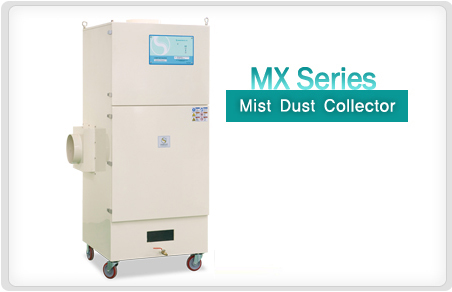

- X-ZONE FILTER SYSTEM
- It is mounted with a permanent filter that doesn't need replacement due to its perfect mechanical dust collection function so that there is no inconvenience of frequent replacement.-no filter replacement
- Due to the large capacity, the system can remove mist collected from distributed machines

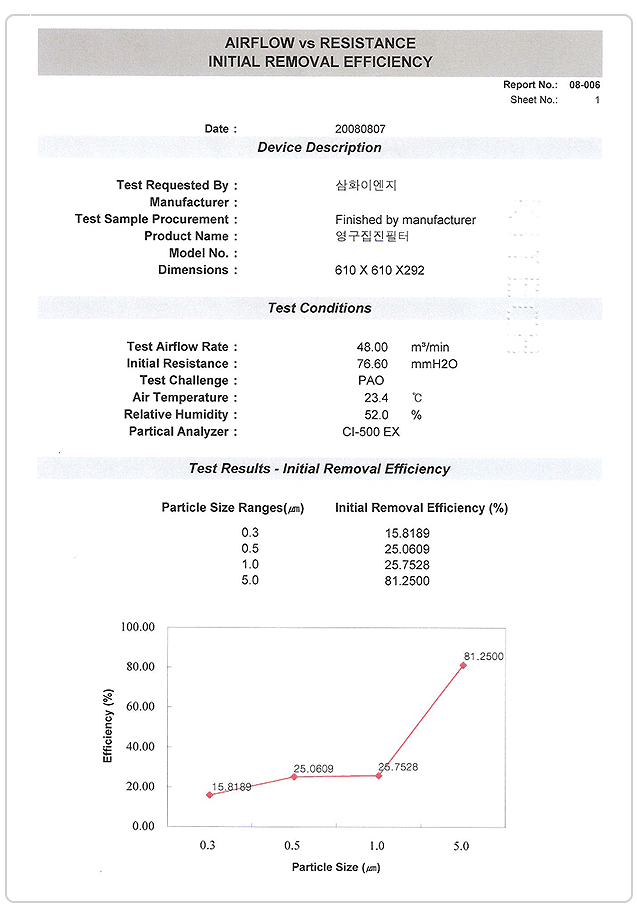

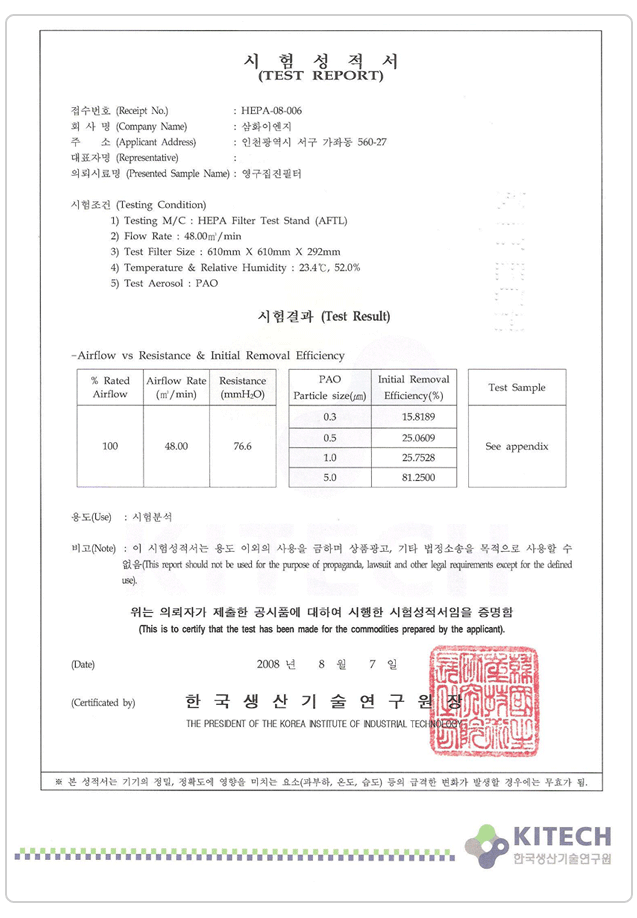

- Accredited by Korea Occupational Safety and Health Agency
- The hepa filter and activated carbon filter are optionally mounted if needed.
- The patent registered filter mounted (No. 10-0899733)
* Mist Deletion Principle of the X-Zone Filter System
Stage 1: The minute oil floating in the air is attached to the 1st collision panel. Stage 2: The minute particle not attached to the 1st collision panel is absorbed into each collision hole and goes through the 2nd collision. Stage 3: The particle not deleted in the 2nd collision panel is deleted by the 3rd collision caused by the compulsory cyclone of the inside collision panel.
* System Organization
Filtering Stage 1: X-zone filter
Filtering Stage 2: Demister
Filtering Stage 3: The non-woven filter-The particle not filtered is deleted.
Filtering Stage 4: The hepa filter is mounted if needed.(option)
