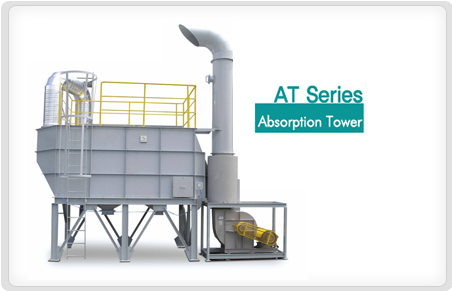

It is a kind of dust collector that eliminates specific harmful gases and bad smells by the molecule or atom of gas to stick to the surface of a solid body and by passing the contaminated gas through the absorption tower with the absorption agent of the solid included. |
|
| |
 |
| |
Chemical factory, painting booth, plastic factory, etc. |
| |
|
 |
| |
|
| - It is a dust collector which is suitable for removal of large odors. |
| - The lifetime of the activated carbon is long because the gas absorption in the central part is inside the dust collector. |
| - It is easy to replace the activated carbon with the lower slide gate. (Convenient maintenance) |
| - The pre-filter is installed inside the dust collector, thus the filter lifetime is extended. (option) |
| - Registered in the Patent Office (No.10-0899733) |
|
| |
|
 |
| |
 |
| |
|
 |
| |
 |
| |
|
|
 |
|
