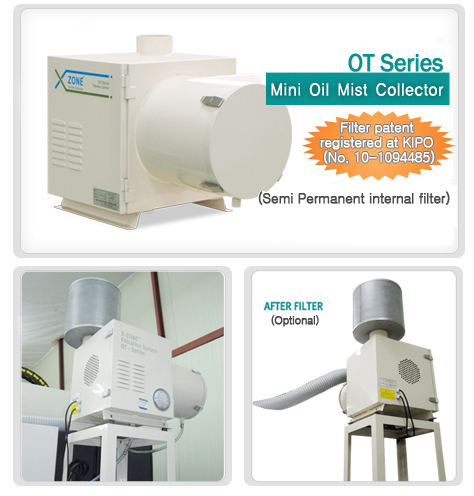

Mini Oil Mist Collector-OT Series

Oil Mist Dust Collector, the product of SAMHWA ENG CO., Ltd., uses mechanical filter based on the world-first patented technology, to save energy charge and improve productivity.

1. By removing oil mist, fume, and bad smell which are generated during machining, it build pleasant environment.
2. With cyclone and mechanical filter, it can be used permanently without filter replacement maximizing oil collection.
3. By removing oil mist, life span of machine is extended.

Machining centers/Automatic lathes/Milling processing/Hobbing machines/Tapping machines

1. With high efficiency design, airflow and static pressure requires less power than competitors while reducing energy consumption.

2. Cyclone method uses inflowing air to clean the internal filter.

3. Mechanical filter eliminates the need to replace filters.

4. Registered at and supported by KOSHA.

5. Oil-contacted point doesn't touch motor part, to enhance the life of motor.

6. Filter structure of OT-SERIES

1st Mist removal with cyclone method (No filter)

2nd Fume & mist removal with circular metal filter (No filter replacement)

3rd Fume & mist removal with fan impeller (No filter)

4th AFTER FILTER functions (Option)

1) Oil smell is removed with carbon mat.

2) HEPA filter purifies over 99.97% of 0.3 μm particle.

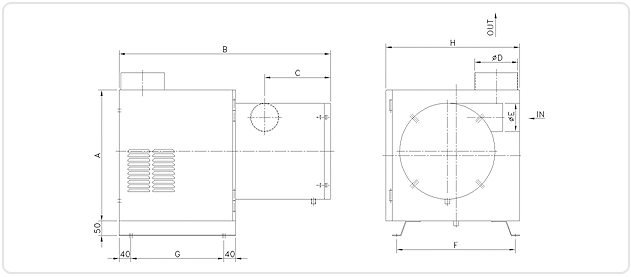

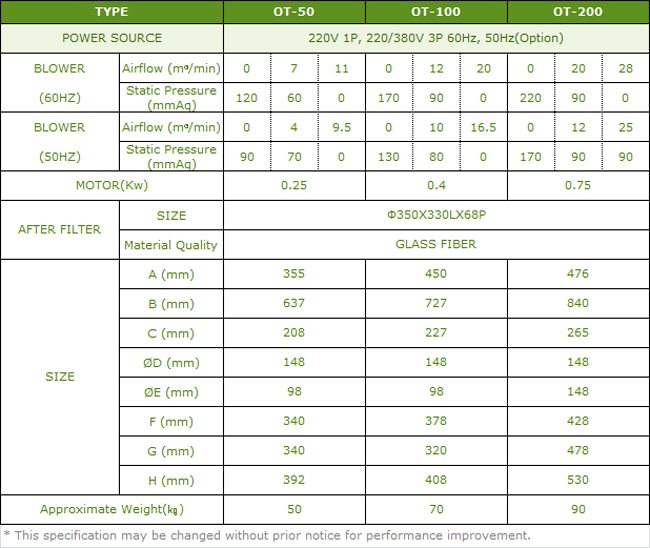

3) SIZE

7. Patent application for purely unique technology - Patent for Mini Oil Mist Collector (No. 10-2011-0044756)

	SAMHWA ENG	Company A	Company B	Company C
Airflow (m³/min)	12	12	10	8.3
Static Pressure (mmAq)	90	120	150	?
MOTOR(Kw)	0.4	0.75	0.75	0.55
Internal Filter	Yes	Yes	Yes	Yes
Internal Filter Material	STEEL PLATE	POLYESTER	POLYESTER	?
Internal Filter Replacement	No	Yes	Yes	Yes
External Filter	Yes	Yes	Yes	Yes
External Filter Material	Glass fiber and other	POLYESTER	POLYESTER	?
Final Processing Efficiency	Removing 99.97% of 0.3μ particle	Removing 98% of 1μ particle	Removing 99.7%	0.5μ particle?
